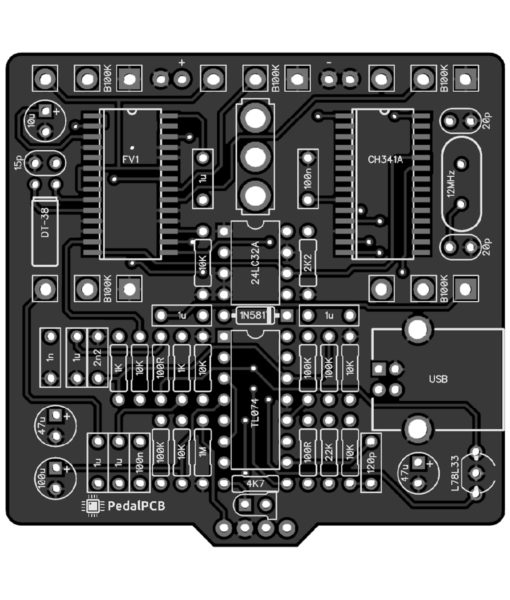

FV-1 based digital multieffects platform with onboard USB EEPROM programmer.
Three digital control parameters, analog dry signal path with wet/dry mix, and adjustable output volume.
Difficulty
Moderate – Some SMD soldering is required as well as the use of command-line utilities to flash / convert EEPROM data. It’s not rocket surgery, but also not an absolute beginners project.
Controls
- Control 1 – Digital parameter control
- Control 2 – Digital parameter control
- Control 3 – Digital parameter control
- Mix – Adjusts the Wet/Dry mix
- Mode (toggle switch) – Selects the active algorithm
- Volume – Controls the overall output volume
Compatibility
The FV1Dev has been tested on Microsoft Windows 10 (1803), Apple macOS Sierra, Apple macOS Mojave, and Ubuntu 18.04.1 LTS. Other versions may work, but have not been tested by PedalPCB.
Specifications
- Designed for a 125B enclosure with top-mounted jacks
Documentation
Usage Instructions
Disclaimer
The FV1Dev is a DIY development board. It has been tested for full functionality on the operating systems listed above but due to the nature of the product no guarantees or warranties are implied. Links to software are provided for convenience only. PedalPCB LLC will not be liable for any damage caused through use, be it indirect, special, incidental or consequential damages (including but not limited to damages for loss of business, loss of profits, interruption or the like).
| Weight | 0.45 oz |
|---|---|
| Dimensions | 2.35 × 2.375 × 0.5 in |

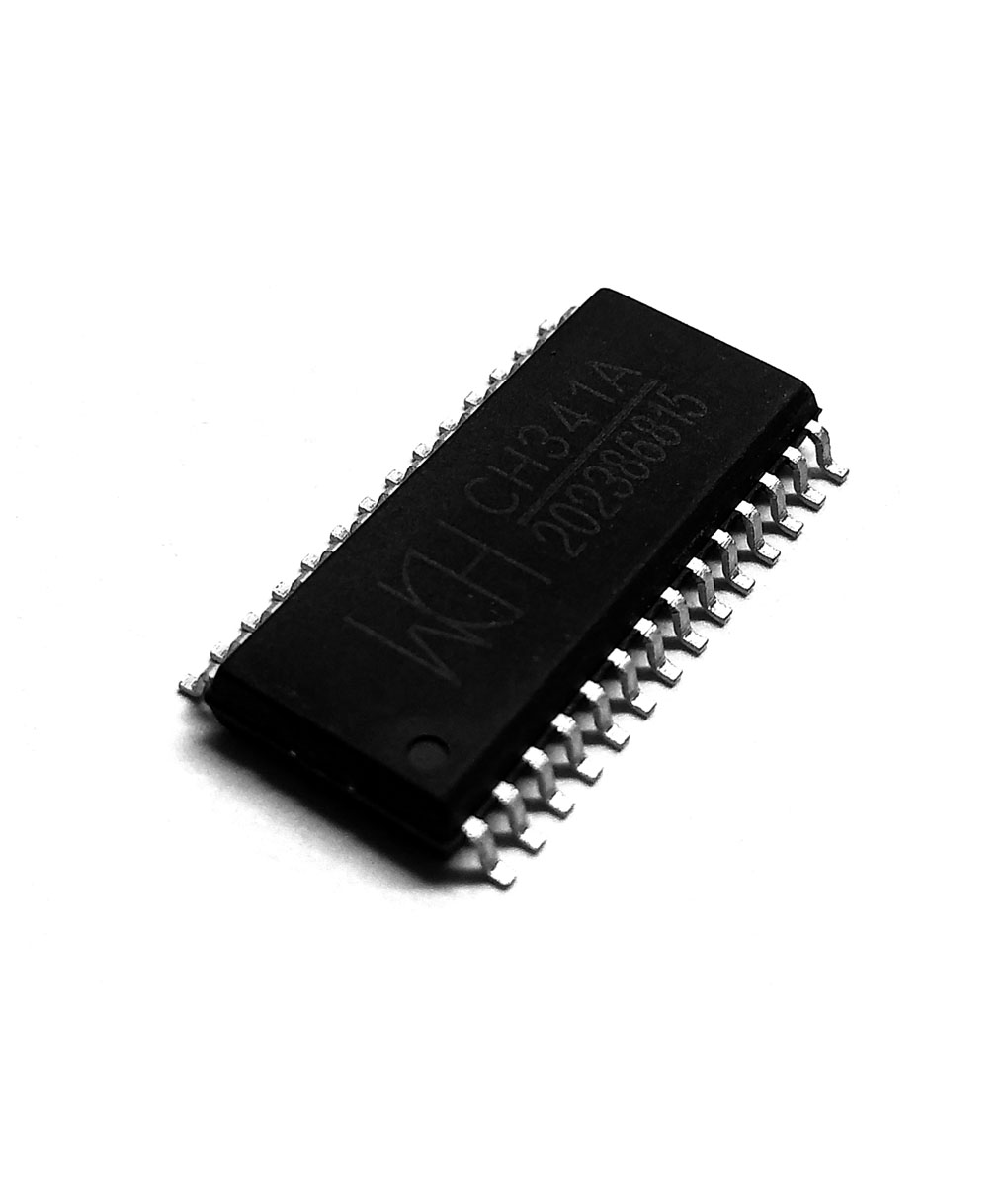

IC CH341A
| Weight | .25 oz |
|---|---|
| Dimensions | 1 × 1 × .5 in |
IC 24LC32A
| Weight | .25 oz |
|---|---|
| Dimensions | 1 × 1 × .5 in |
Spin FV-1 IC (Pre-Soldered PCB197)
| Weight | .1 oz |
|---|---|
| Dimensions | .75 × .45 × .2 in |
12.000 MHz Crystal
| Weight | .1 oz |
|---|---|
| Dimensions | .25 × .25 × .5 in |
2 reviews for FV-1 Development PCB
Only logged in customers who have purchased this product may leave a review.
Related products
stay_114 (verified owner) –
I loved the PCB, I just don’t want to start working on it until the assembly pdf comes out, I hope they don’t take it long to upload it
tcpoint (verified owner) –
Works great. Sounds great, as well. It’s easy to program and then you can play it, right away.
